Here are some pictures of my VDR box. Click on an image for a higher resolution version.

in action

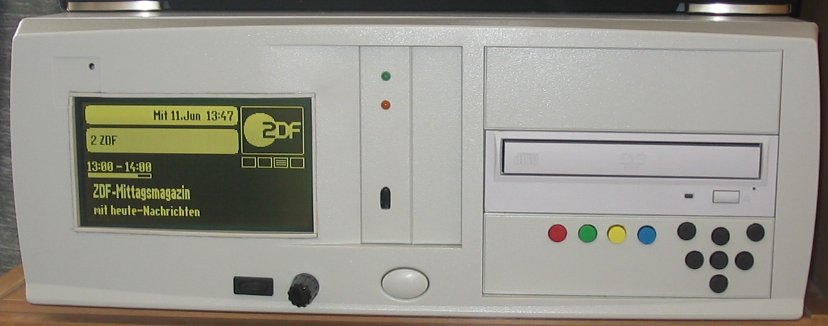

The box in action.

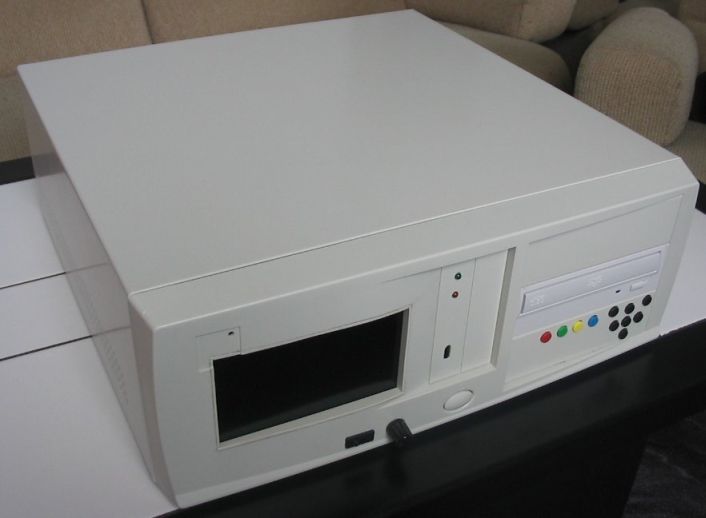

View from the front.

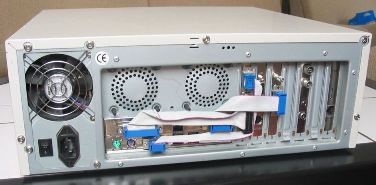

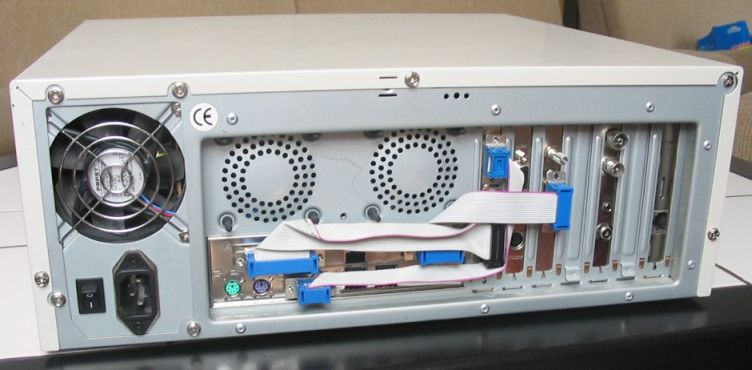

View from the back. The cables are for the LCD display, IR receiver and front panel.

inside 1

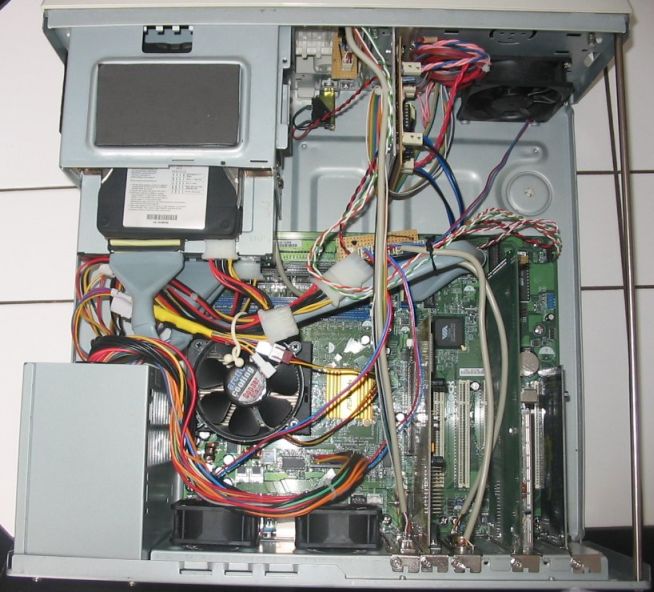

Inside 1.

inside 2

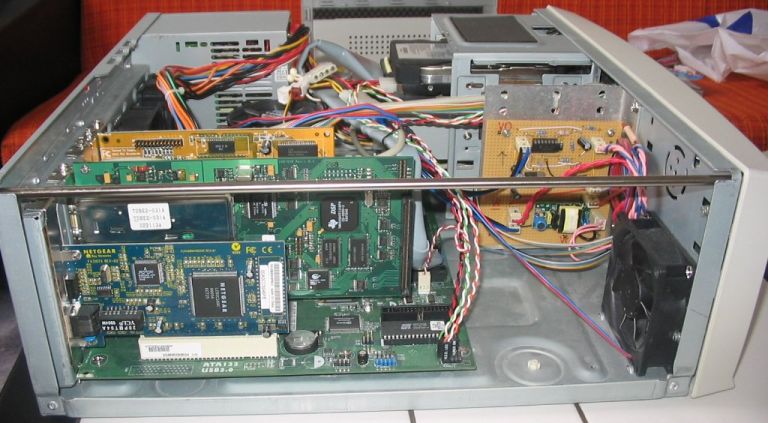

Inside 2. On the right hand side you can see the circuit board with the voltage regulation that is needed for the graphical LCD display.
